Waterproof Aluminum Carport Solar Mounting System

Carport Mounting System

Aluminum carport solar mounting system installation of the solar PV carport installation system is designed for residential or commercial parking lot parking lot.
Product Origin:China
Color:Nature, Or Can Be Customized
Shipping Port:Tianjin
Brand:GUOCHU

CONTACT

BASIC INFORMATION

Carport solar mounting system can provide both shade and solar energy can be generated.Guochu solar carport can be customized according to your ground size.

Guochucarries a variety of designs for solar carport systems such as double and single row parking, customized foundations and optional sub-decking for waterproofing and preventing icicle formation. Other optional accessories include advertising space, cable management, carport lighting, and drainage.

TECHNICAL PARAMETER

Installation location

Ground

Installation angle

Up to request

Wind load

60m/s 216kmh/133mph)

Snow load

1.4KN/m²

Applicable module type

Mono-crystalline, Poly-crystalline, Double wave and Thin film

Module Orientation

Horizontal, Vertical

Design standard

AS/NZS1170,JIS C 8955-2017

Bracket material

AL6005-T5(Anodized Oxidation)

Fastener Material

Stainless steel SUS304

Warranty&Duration

10 years&More than 20 years

FEATURES & BENEFITS

Lightweight, easy transportation and installation, safe construction;

Effectively use of the space while generating electricity;

Available for installing double grass solar panel;

One parking structure,many benefits;

The maximum pre-assembly, save construction time and labor cost.

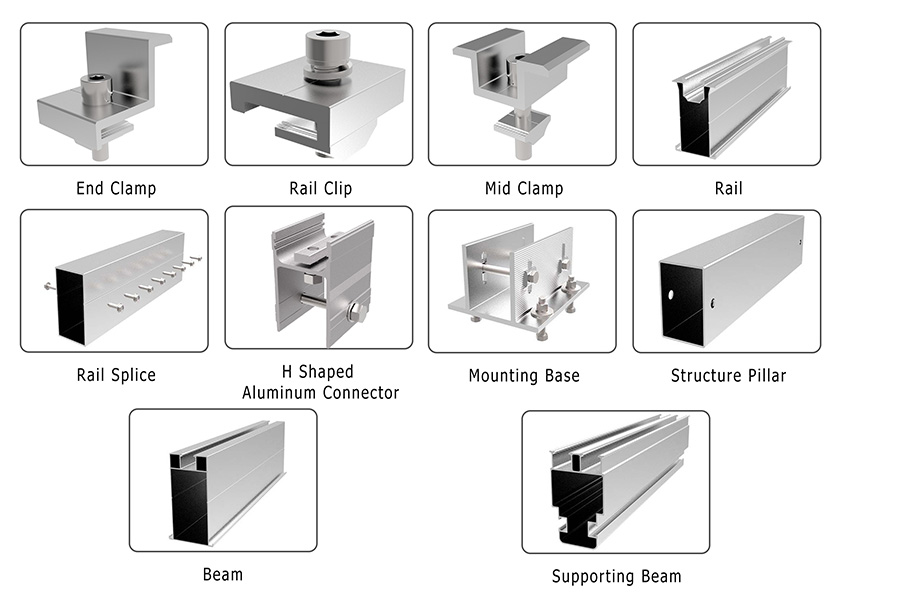

COMPONENTS

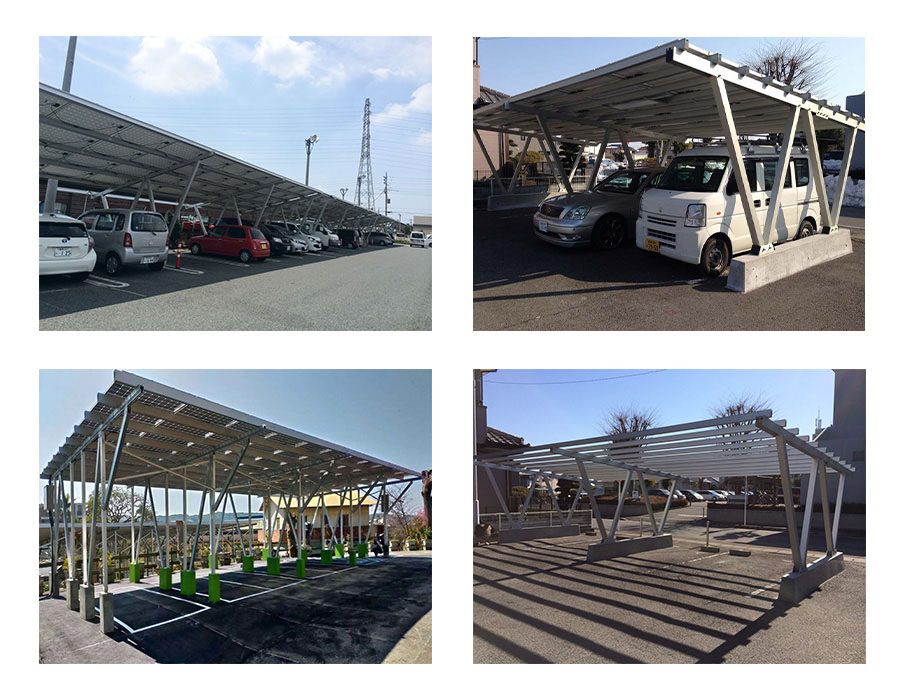

PROJECTS
