Solar Pv Ground Screw Foundation Agriculture Mount

Agriculture Mounting System

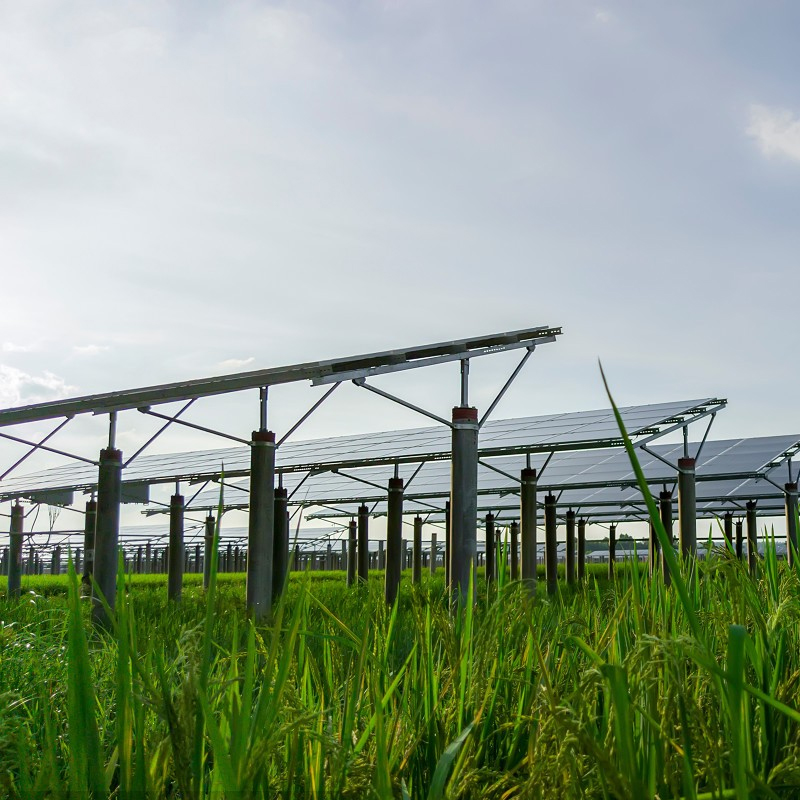

This agricultural solar mounting system is based on ground screws on farmland.

Product Origin

China

Color

Nature, Or Can Be Customized

Shipping Port

Tianjin

Brand

GUOCHU

CONTACT

BASIC INFORMATION

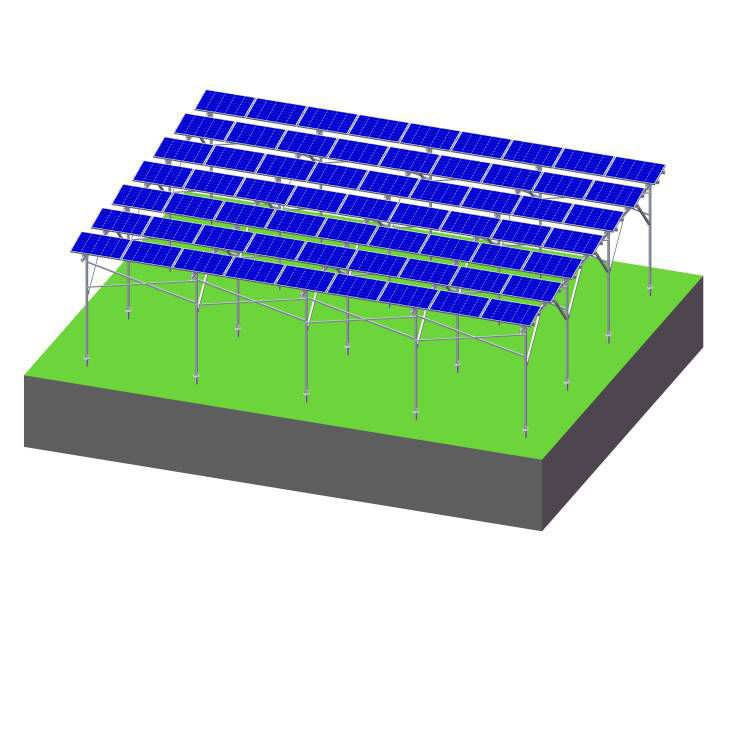

The solar farm racking system is a highly pre-assemblied agricultural power station system suitable for agricultural greenhouse vegetable cultivation and photovoltaic power generation.
Solar agricultural bracket can make full use of light to generate electricity without affecting the growth of crops. The solar panel can be tilted at a certain angle, and a certain gap needs to be left on each side of the solar panel to meet the sunlight requirements of the crops.

TECHNICAL PARAMETER

Installation location

Ground

Installation foundation

ground screw foundation

Installation angle

Up to request

Wind load

60m/s (216kmh/133mph)

Snow load

1.4KN/m2

Distance from module lowest point to the ground

Up to request

Applicable module type

Mono-crystalline, Poly-crystalline, Double wave and Thin film

Module Orientation

Horizontal, Vertical

Design standard

AS/NZS1170,JIS C 8955-2017

Bracket material

AL6005-T5(Anodized Oxidation)

Fastener Material

Stainless steel SUS304

Warranty&Duration

10 years&More than 20 years

FEATURES & BENEFITS

Light weight, easy transportation & installation and safe construction;

The surface is treated by oxidation, high corrosion resistance and good stability;

Suitable for various designs and solutions;

The maxiumum pre-assembly, save contruction time and labor cost;

Suitable for sandy soil;

More than 50% transmittance which is conducive to crop growth.

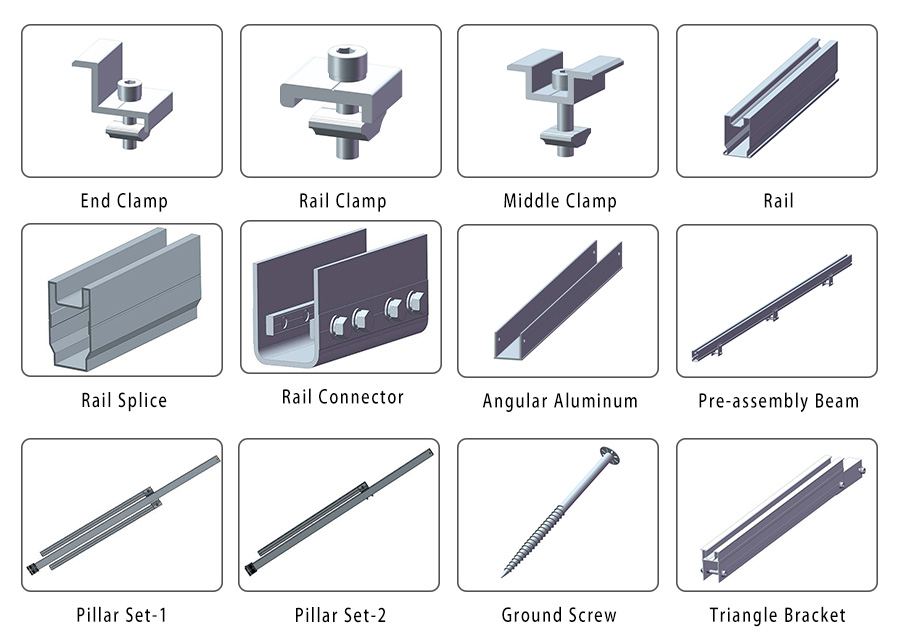

COMPONENTS

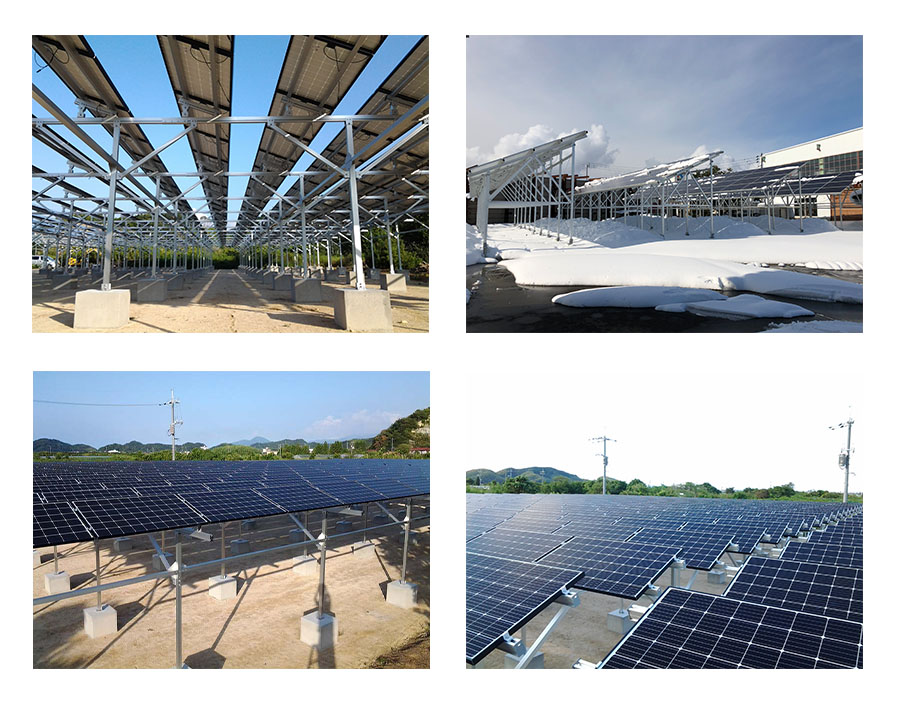

PROJECTS
